2023 Sunday Blueprint

The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.

This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part – riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.

Key Features

• Sunday Current v2 2.4″
• Odyssey Springfield Brakes
• FSA Integrated Headset
• Sunday Cornerstone Grips
• Sunday Freeze Front Load Stem
• KMC S1 Chain

Specifications

Frame: Sunday Blueprint, 20″ top tube, integrated 1-1/8″ head tube
Fork: Sunday Blueprint, 20″ fork w/ 2-piece steerer tube and welded pre-load

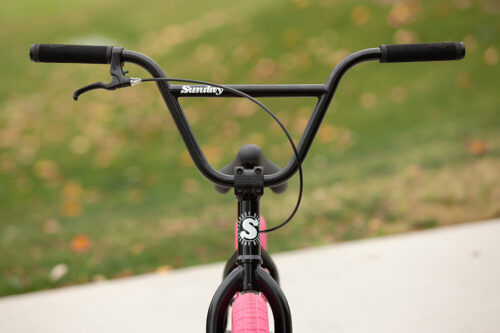

Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8″
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible

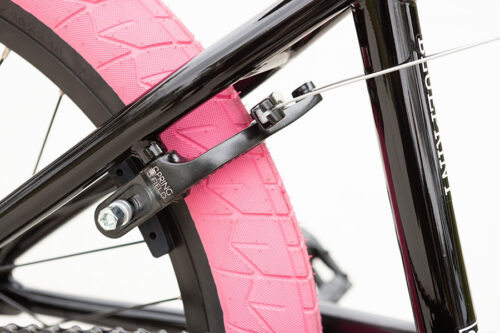

Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

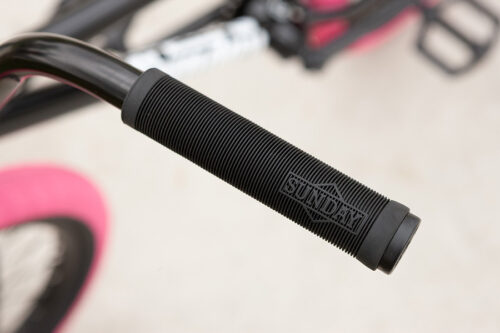

Grips: Sunday Cornerstone

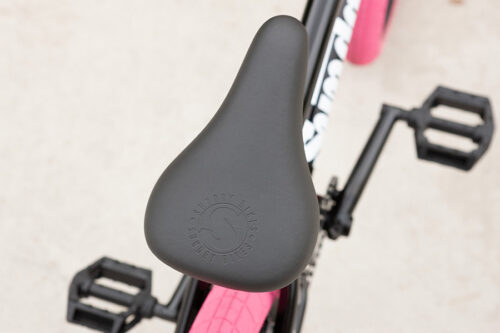

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated

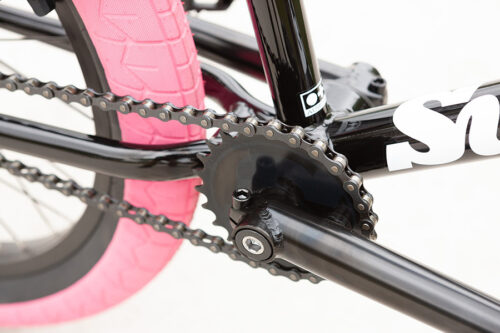

Sprocket: Sunday S-Logo, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Loose-ball, American, 19mm
Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20″, 36H
Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8″ axle
Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
Spokes: 14g steel, black

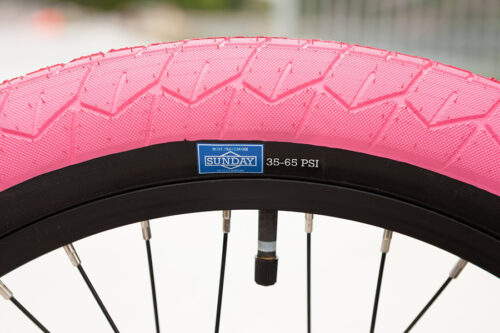

Tires: Sunday Current, 20 x 2.4″ (F & R), Pink
Chain: KMC S1
Approx. Weight: 12,1 kg (with brakes)

Frame Geometry

Top Tube Length: 20″
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5″
Standover: 8.75″

Handlebar Geometry

Rise: 9″
Width: 28.5″
Backsweep: 12°
Upsweep: 4°

Kuidas valida BMX jalgratta suurus?

Teile ideaalselt sobiva BMX-ratta või raami valimisel on palju olulisi asju, kuid üks asi, mida peaksite alati arvestama, on raami ülemise toru (top tube) pikkus. Allpool toome välja tähtsamad mõõdud:

0,9–1,1m pikkune sõitja peaks valima 14-tolliste rataste läbimõõduga jalgratta
1,1–1,2m pikkune sõitja peaks valima 16-tolliste rataste läbimõõduga jalgratta
1,2–1,4m pikkune sõitja peaks valima 18-tolliste rataste läbimõõduga jalgratta
1,4–1,6m pikkune sõitja peaks otsima jalgratast, mille rattad on 20 tolli ja raami ülemise toru pikkus on kuni 20,5 tolli
1,6–1,8m pikk sõitja peaks otsima jalgratast, millel on 20 tolli rattad ja raami ülemise toru pikkus umbes 20,5 – 20,75 tolli
1,8 ja + pikkune sõitja peaks otsima jalgratast, mille rattad on 20 tolli ja raami ülemise toru pikkus vähemalt 21,0 tolli
